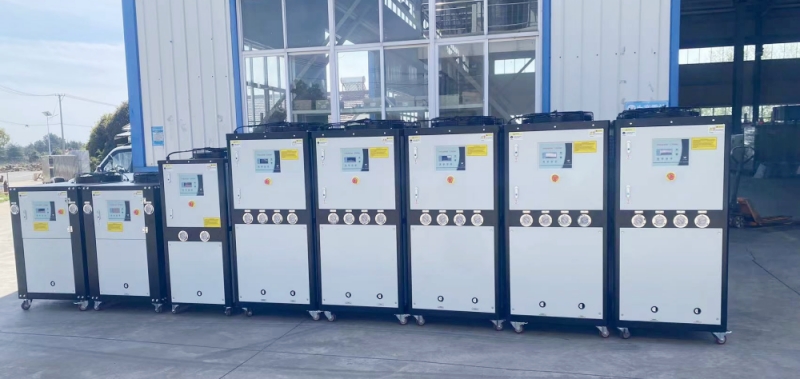

How To Reduce The Power Consumption Of Industrial Chillers During Operation?

In industrial production, industrial chillers are the core equipment that ensures stable operational processes, but their energy consumption should not be overlooked. Reducing the energy consumption of chillers not only lowers operational costs but also aligns with the trend of energy conservation and environmental protection. For example, for every 1°C increase in the temperature of the cooling system, electricity consumption can be reduced by approximately 6%.

Hengde, with its extensive refrigeration experience, offers a series of professional cooling solutions to help reduce chiller energy consumption.

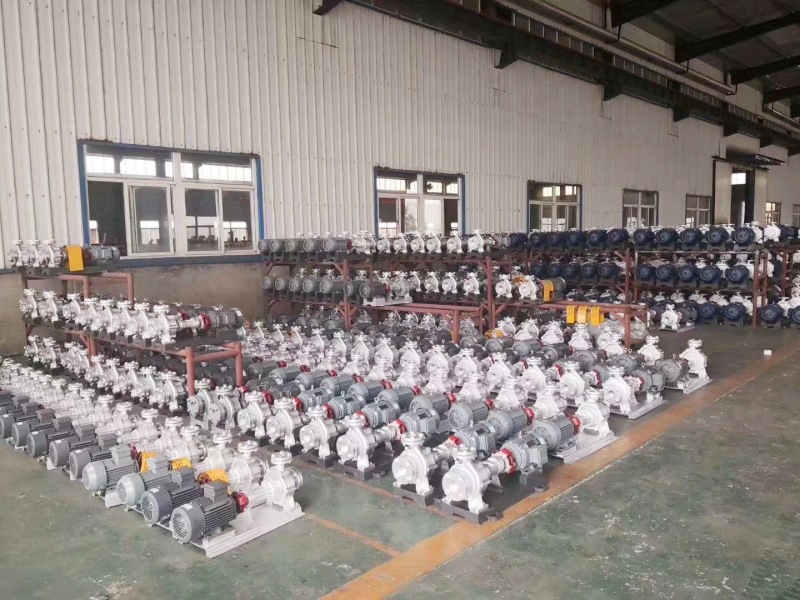

1. Energy-Saving Measures for Cooling Water Pumps

• Variable Frequency Control

When the temperature difference of the cooling water is less than 2-3°C, the pump experiences a "small temperature difference, large flow" phenomenon, leading to energy waste. By implementing variable frequency control or replacing large pumps with smaller ones, electricity consumption can be significantly reduced.

• Variable Speed Adjustment

The flow, pressure, speed, and power of the pump are closely related. Adjusting the speed of the pump can greatly reduce power consumption. Compared to other adjustment methods, variable speed adjustment is not only more efficient but also allows for flexible power adjustments based on demand, achieving the optimal energy-saving effect.

• Parallel Control

For pumps operating in parallel, the number of pumps in operation should be adjusted based on the temperature difference. Using a combination of large and small pumps or variable frequency control can help optimize energy consumption.

2. Energy-Saving Operation for Cooling Towers

During non-high-temperature seasons (such as winter or transitional periods), the cooling tower fan load is low, and the ambient temperature is favorable. In such cases, shutting down the fan or using variable frequency control can help reduce unnecessary energy consumption.

3. Cold Storage Function of Chilled Water Tanks

• Cold Storage Utilization

When the chiller's capacity is sufficient and the tank capacity allows, it is possible to run the chiller at full load during off-peak electricity hours to store low-temperature chilled water. During peak hours, the stored cold energy can be released to reduce the chiller’s load, thereby saving electricity costs.

• New Construction or Renovation Suggestions

When designing or renovating cooling systems, consider large-capacity underground water tanks that can serve multiple functions, such as cold storage, landscaping, and firefighting. This approach reduces both investment costs and operational expenses.

Hengde not only offers energy-efficient industrial chillers but also provides professional technical support and after-sales service throughout the entire lifecycle of the equipment. From initial selection guidance to ongoing operational optimization recommendations and regular maintenance services, Hengde’s technical team works closely with users to help reduce the energy consumption of industrial chillers, achieving a win-win outcome for efficient production and environmental sustainability.
